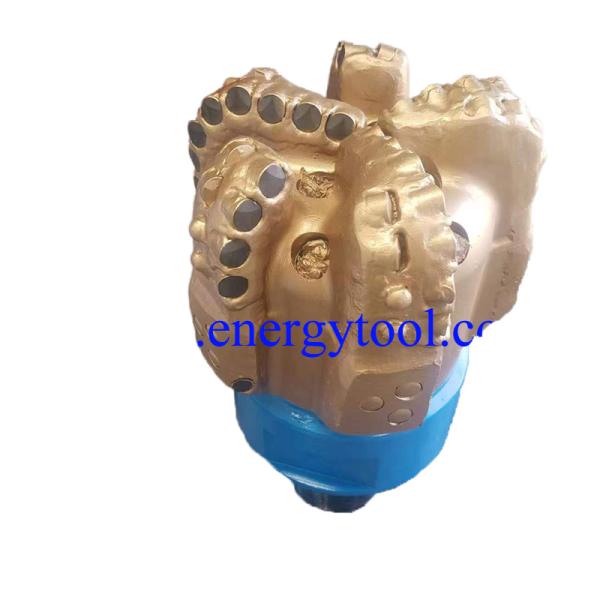

8-1/4 Inch 5 Blades PDC Diamond Drilling Tool Rock Bit for Oilfield
Introduction of Steel-body:
Steel is metallurgically opposite of matrix.
It is capable of withstanding high impact loads, but is relatively soft and, without protective features, would quickly fail by abrasion and erosion.
Quality steels are essentially homogeneous with structural limits that rarely surprise their users.
Steel body bits are manufactured by machining the steel bars per design.
Advantage of steel-body PDC bits:
The strength and ductility of steel give steel-bit bodies high resistance to impact loading.
Steel bodies are considerably stronger than matrix bodies.
Because of steel material capabilities, complex bit profiles and hydraulic designs are possible and relatively easy to construct on a multi-axis, computer-numerically-controlled milling machine.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily.
This is a particular advantage for operators in low-cost drilling environments.
Development of PDC bits:
Fortunately, both steels and matrix are rapidly evolving, and their limitations are diminishing.
As hard-facing materials improve, steel bits are becoming extremely well protected with materials that are highly resistant to abrasion and erosion.
At the same time, the structural and wear-resisting properties of matrix materials are also rapidly improving, and the range of economic applications suitable for both types is growing.
Today's matrix has little resemblance to that of even a few years ago. Tensile strengths and impact resistance have increased by at least 33%, and cutter braze strength has increased by ≈80%.
At the same time, geometries and the technology of supporting structures have improved, resulting in strong, productive matrix products.
Applications:
Water Well drilling
Having higher ROP, diamond PDC drill bits are also widely used as water well drill bits for geothermal drilling.
Oil & Gas drilling
- It is the most widely used bit in the Oil &Gas drilling. Hydraulic factors are very important during drilling.
- PDC bits have been used in the areas that can't be available previously, such as harder, more abrasive, and more variable formations.
- The diamond PDC bit is mainly composed of the bit body, cutting teeth, nozzle, gauge protection, and API Thread connection.
| Body material: | steel body |
| Available size: | 8 1/4'' |
| Painting color: | customized |
| Condition: | new manufacture |
| Applicable industrial: | energy & mining |
| Machinery test: | as requirements |
| Place of origin: | Suzhou,China |
| Certificate: | API & ISO |
| Manufacture Processing: | forging |
| Usage: | oil/gas/water/mining wells, exploration,geothermal... |
| Warranty: | 1 year or based on products |
What we have:
Production Processes:
Certifications:
Package & Shipment:
FAQ:
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
