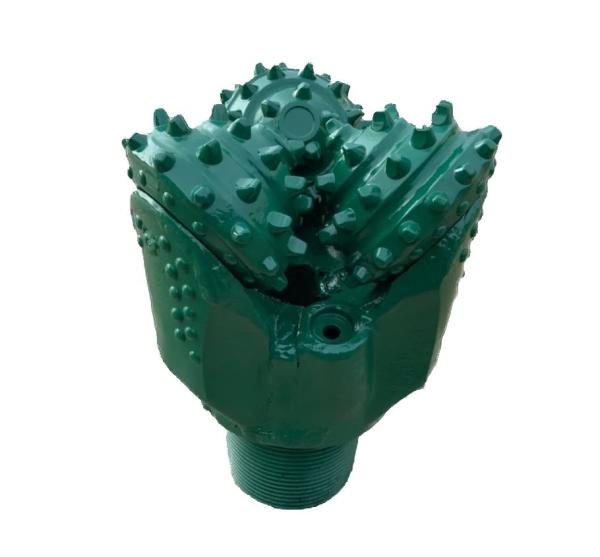

11-1/4′′ TCI Button Drill Bit for Mining Oil Gas Water Well Drilling
IADC classification
The IADC classification system is a four-character design- and application-related code. The first three characters are always numeric; the last character is always alphabetic. The first digit refers to bit series, the second to bit type, the third to bearings and gauge arrangement, and the fourth (alphabetic) character to bit features.
Series
Series, the first character in the IADC system, defines general formation characteristics and divides milled-tooth and insert-type bits. Eight series or categories are used to describe roller-cone rock bits. Series 1 through 3 apply to milled-tooth bits; series 4 through 8 apply to insert-type bits. The higher the series number is, the harder or more abrasive the rock type is. Series 1 represents the softest (easiest drilling applications) for milled-tooth bits; series 3 represents the hardest and most abrasive applications for milled-tooth bits. Series 4 represents the softest (easiest drilling applications) for insert-type bits, and series 8 represents very hard and abrasive applications for insert-type bits.
Unfortunately, rock hardness is not clearly defined by the IADC system. The meanings of “hard” sandstone or “medium-soft” shale, for example, are subjective and open to a degree of interpretation. Thus, information should be used only in a descriptive sense; actual rock hardness will vary considerably, depending on such factors as depth, overbalance pressure, porosity, and others that are difficult to quantify.
Type
The second character in the IADC categorization system represents bit type, insert or milled tooth, and describes a degree of formation hardness. Type ranges from 1 through 4.
Bearing design and gauge protection
The third IADC character defines both bearing design and gauge protection. IADC defined seven categories of bearing design and gauge protection:
- nonsealed roller bearing (also known as open bearing bits)
- air-cooled roller bearing (designed for air, foam, or mist drilling applications)
- nonsealed roller bearing, gauge protected
- sealed roller bearing
- sealed roller bearing, gauge protected
- sealed friction bearing
- sealed friction bearing, gauge protected. Note that “gauge protected” indicates only that a bit has some feature that protects or enhances bit gauge. It does not specify the nature of the feature. As examples, it could indicate special inserts positioned in the heel row location (side of the cone) or diamond-enhanced inserts on the gauge row.
| Product Specifications |
| Diameter | 11 1/4" |
| Bearing Type | Rubber sealed |
| Drilling cycle type | Mud circulation |
| Connection thread type | 6 5/8 reg pin |
- Durability Redefined: Featuring tungsten carbide rock-engaging cones, these bits are built to endure tough conditions and stand the test of time. They are known for consistently performing in any environment with swift penetration rates. Using these bits, you'll experience faster drilling with superior penetration rates, maximizing productivity and project completion.
- Versatility Across Industries: From telecommunications to oil and gas, our bits excel in various industries, offering reliability and versatility. Their Replaceable carbide fluid ports, shirt-tail hard facing, and strategically placed carbide buttons on the bit's housing extend the tool's service life, too.
- Optimized Efficiency: Precision-engineered by our team with decades of combined experience, our Tri-Cone Rock Bits ensure swift progress on every project.
|
About Us
Certifications
Package&Shipping
Applications
FAQ
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
