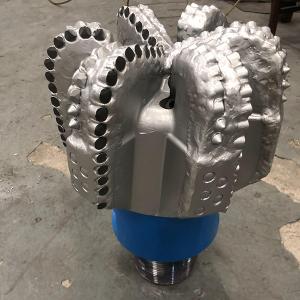

PDC Diamond Bit 13-1/2 Inch API oil Bit Of Diamond Drill Bit Oil Well
1 . Descriptions:
According to the International Association of Drilling Contractors (IADC), the Fixed-cutter of PDC Drill bit classification composed of four characters that designate:
- PDC Drill Bit Body material.
- PDC Drill Bit Cutter density.
- PDC Drill Bit Cutter size or type.
- PDC Drill Bit profile
All of our PDC Drill bits are fit for API standard and used in the drilling Industry.
The PDC drill bits size 3~22inch with 3~9Blades are available. And different classification cutter of PDC Drill Bit are optional according to your budget .
2. PDC Drill Bit Specification:
| SPECIFICATION |
| Size : | 13 -1/2" (342.9mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 6 |
| Nozzles Quantity : | 9 |
| API Connection (in) : | 6 -5/8" REG |
| Gauge Length (In): | 3 |
| OPERATIONAL PARAMETERS |
| Weight on Bit (KN): | 88-176 kN |
| RPM Range(Rotary): | 100-DHM |
| Flow Rate(lps): | 47-56 LPS |
| Make-Up Torque(KN): | 52-57 KN.M |
3 . PDC Drill Bit profile
Profile shape of PDC Drilll Bit is one of the most important characteristics of fixed-cutter bits, having direct influence on possibilities for cutter placement and densities and on hydraulic layouts. Profile also affects: Bit stability
4 . PDC Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters of PDC Bit are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit of nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.
6. Steel Body PDC Bits
Steel body of PDC Drill Bit is the opposite of matrix body of PDC drill Bit . It can of withstanding high impact loads, but it is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies of pdc bit are considerably stronger than matrix bodies of pdc drill bit
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shared the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
